Why Your AC Keeps Tripping Breaker in Beverly Hills
You settle in to enjoy a quiet afternoon in your living room when the sudden silence of a shutting-down air conditioner catches your attention. The indoor air quickly grows warm, and a check of your electrical panel reveals a flipped switch. When your ac keeps tripping breaker beverly hills systems are under immense physical and electrical strain, especially during the hottest months of the year. While resetting the breaker once might seem like a quick fix, a recurring trip is a direct warning sign that your system is drawing more electrical current than it can safely handle.
At Smart HVAC System of Beverly Hills, we help homeowners protect their cooling systems and their homes from electrical hazards. If your system continues to shut down your power, it is crucial to understand what is happening behind the walls and inside your outdoor unit. Continuing to reset a stubborn breaker can lead to permanent compressor failure or serious electrical damage.
Understanding the Role of Your AC Circuit Breaker
Your electrical panel is designed with safety as its primary objective. The circuit breaker dedicated to your air conditioning system monitors the flow of electricity. If the current exceeding the safe limit (measured in amps) passes through the circuit, the breaker trips to cut off the power supply. This prevents the wiring from overheating, melting, or starting an electrical fire.
When an air conditioner trips the breaker, it is rarely a problem with the breaker itself. Instead, the cooling system is experiencing a mechanical or electrical issue that forces it to pull excessive power from the grid. Recognizing the difference between a one-off fluctuation and a systemic problem is the first step in protecting your investment.
Common Mechanical Causes for Tripped AC Breakers
Many electrical issues actually begin as mechanical problems. When components inside your air conditioner are forced to work harder to achieve the same cooling output, they consume far more electricity. Here are the most frequent mechanical culprits behind a tripped switch.
1. Severe Airflow Restrictions
When airflow through your system is blocked, the blower motor has to work overtime to circulate air. This extra effort spikes the electrical draw. Airflow restrictions are commonly caused by:
- Extremely dirty or clogged air filters that choke the system
- Blocked, closed, or covered supply registers and return vents
- Accumulated dust and debris on the indoor evaporator coil
If you suspect airflow is the main issue, checking your filter is a safe first step. If the problem persists after putting in a fresh filter, you may need a professional diagnostic to inspect the internal blower motor.
2. Dirty Condenser Coils
The outdoor unit of your air conditioner is responsible for dispersing the heat collected from inside your home. If the condenser coils are covered in dirt, leaves, lawn clippings, or dust, they cannot release heat efficiently. Because the heat remains trapped, the system must run longer and hotter, eventually pulling too many amps and tripping the breaker. Regular maintenance is the easiest way to prevent this issue from developing; you can explore our preventative AC maintenance tips to keep your outdoor unit clean.
3. Low Refrigerant Levels
An air conditioner does not consume refrigerant; it circulates it. If refrigerant levels are low, it means there is a leak in the system. Low refrigerant forces the compressor to work much harder to cool your home, leading to overheating and a tripped circuit breaker. If you notice your home is not cooling down even when the system is running, or if you suspect a leak, look into why your system might be struggling by reading about why your AC is blowing warm air.
Electrical Culprits That Cause Breaker Tripping
If you want it handled correctly the first time, consider professional our services in Beverly Hills.
Direct electrical faults require immediate professional attention. These issues involve the wiring, motors, and capacitors that keep your system running smoothly.
1. Failing Capacitor
The capacitor acts like a temporary battery that provides the initial burst of energy needed to start the compressor and the fan motors. Over time, heat and wear cause capacitors to degrade. When a capacitor begins to fail, the compressor struggles to start up, drawing a massive amount of electrical current in the process. This sudden spike frequently trips the breaker immediately after the system attempts to turn on.
2. Short Circuits and Damaged Wiring
With exposure to outdoor elements, fluctuating temperatures, and vibrational wear, the electrical wiring inside your AC can fray or lose its insulation. If two hot wires touch, or if a live wire comes into contact with the metal chassis of the unit, a short circuit occurs. This causes an instantaneous surge of electricity that trips the breaker to prevent a fire.
3. Compressor Motor Issues
The compressor is the heart of your cooling system. As it ages, the electrical motor windings inside the compressor can break down. This can lead to a condition known as a “grounded compressor,” where the electrical current bypasses the motor windings and discharges directly into the metal frame. This is a severe electrical fault that will instantly trip your breaker and often requires professional intervention. If you suspect your compressor is reaching the end of its lifespan, learn more about the signs you need AC compressor replacement.
Beverly Hills Climate and Grid Demands on Your AC
Beverly Hills homes face unique operational challenges during the summer months. The local Mediterranean climate brings sustained heat waves, particularly in July and August, when outdoor temperatures climb significantly. Because many homes in the area feature historic architecture or older electrical panels, the local power grid and residential electrical systems face immense stress during peak afternoon hours.
When the outdoor temperature peaks around 2:00 PM, your air conditioner is forced to cycle on and work against maximum thermal resistance. If your home has an older electrical service panel, the combination of high outdoor temperatures, increased household appliance use, and a straining AC compressor can easily overload your dedicated breaker. This seasonal stress highlights why choosing a qualified HVAC repair company in Beverly Hills is critical to keeping your home safe and cool when regional utility grids are working at maximum capacity.
How to Safely Handle a Tripped AC Breaker
If your air conditioner suddenly stops running and you find a tripped breaker, it is vital to handle the situation systematically to avoid damaging your equipment or putting yourself at risk.
| Step | Action to Take | Why It Matters |
|---|---|---|
| 1 | Turn off the AC at the thermostat. | Prevents the system from immediately trying to start up and draw power when you reset the breaker. |
| 2 | Locate your main electrical panel. | Find the breaker labeled for your air conditioner or outdoor condensing unit. |
| 3 | Reset the breaker fully. | Push the switch completely to the “OFF” position first, then click it back to the “ON” position. |
| 4 | Switch the thermostat back to cool. | Monitor the system closely as it starts up to see if it runs normally or trips immediately. |
| 5 | Call a professional if it trips again. | Repeated tripping indicates a severe electrical fault or mechanical failure that requires expert repair. |
For a detailed walkthrough on safely managing your electrical panel during a cooling outage, consult our step-by-step guide on how to reset an AC breaker.
The Dangers of Repeatedly Resetting Your Breaker
It can be tempting to simply walk over to the electrical panel and flip the breaker back on every time it trips. However, doing so can cause severe, costly damage to your home and cooling system:
Many Beverly Hills homeowners rely on expert our services in Beverly Hills for exactly this.
- Compressor Burnout: Forcing a struggling compressor to start repeatedly can cause its internal motor insulation to melt, destroying the compressor entirely.
- Electrical Fire Hazards: Each trip causes wear on the breaker and the wiring. Repeatedly forcing current through a compromised circuit can generate extreme heat, posing a serious fire hazard.
- Destruction of Sensitive Electronics: The electrical surges associated with a tripping breaker can damage the main control boards of your modern air conditioner, leading to complex electronic repairs.
Professional Solutions to Prevent AC Breaker Trips
Resolving a recurring electrical issue requires specialized diagnostic tools and training. When you contact a professional air conditioning contractor beverly hills ca, they will perform several critical checks to isolate the root cause:

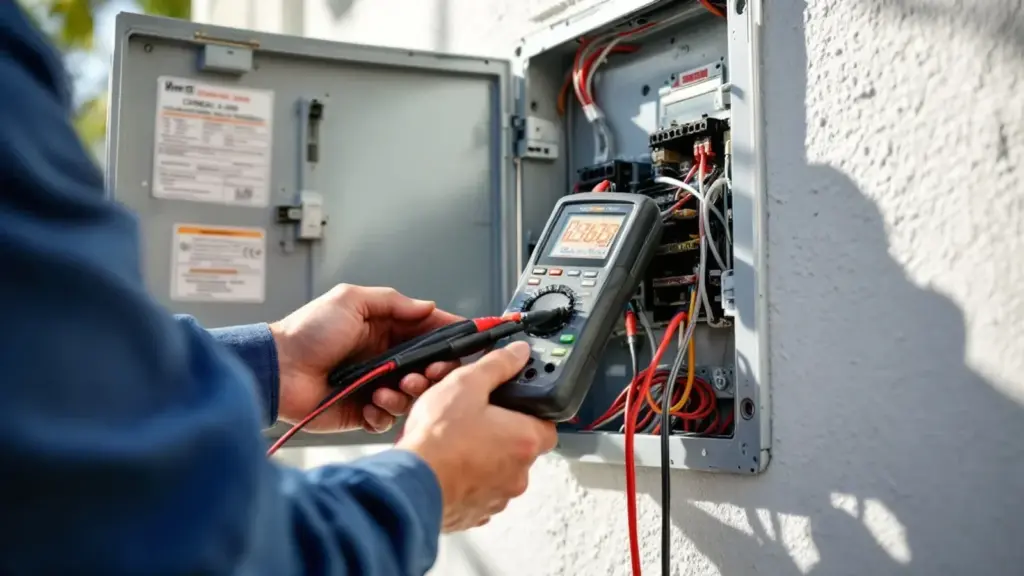

- Electrical Current Measurement: Technicians use clamp-on ammeters to measure the exact electrical draw of your compressor and fan motors during startup and operation, comparing these numbers to the manufacturer specifications.
- Capacitor Testing: Checking the capacitance values ensures your motor helper components are strong enough to launch the system without causing high amp spikes.
- Insulation Resistance Testing: This specialized test checks the integrity of motor windings to ensure there are no internal shorts or grounding issues inside the compressor.
- Terminal and Wiring Inspections: Technicians inspect electrical connections for signs of pitting, corrosion, or loose lugs that could increase electrical resistance.
Taking care of these underlying issues quickly ensures your system runs safely, efficiently, and reliably throughout the warmest days of the year.
Frequently Asked Questions
Can a dirty air filter really cause my AC to trip the breaker?
Yes. A severely clogged air filter blocks airflow, forcing the blower motor to work harder and run longer. This increases the overall electrical draw of your system, which can overheat the blower motor and trip the breaker.
Why does my AC only trip the breaker during the hottest part of the afternoon?
In the peak heat of the afternoon, the temperature difference between the indoor air and outdoor air is at its highest. This forces your compressor to work under maximum load and pressure, causing it to draw more electricity than it does during cooler mornings or evenings.
Is it safe to upgrade to a larger breaker if my AC keeps tripping?
No, you should never install a larger breaker on an existing circuit. The breaker size is carefully matched to the wire gauge in your walls. Installing a larger breaker without upgrading the wiring creates a severe fire hazard because the wires can overheat before the breaker trips.
How do I know if my AC compressor is grounded?
A grounded compressor occurs when the electrical windings inside the motor break down and touch the side of the compressor shell. This creates an immediate short circuit that will instantly trip your breaker the moment the system attempts to start. Testing for this requires specialized diagnostic equipment used by a professional technician.
Request Professional Air Conditioning Repair Beverly Hills
If your cooling system continues to shut down your power, do not leave your comfort and household safety to chance. Our team at Smart HVAC System of Beverly Hills provides thorough diagnostic services to locate the exact cause of your electrical issues. Contact us today to schedule your air conditioning repair beverly hills service and ensure your system runs safely all summer long.
